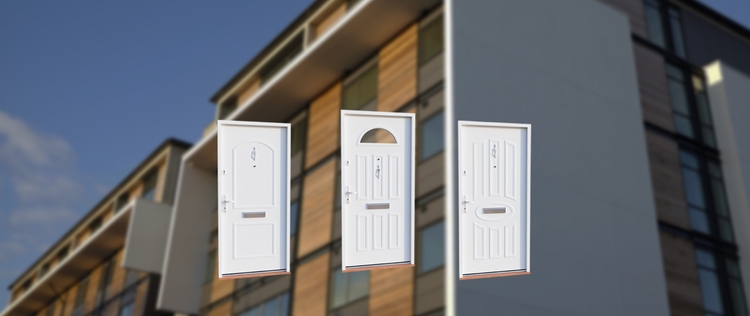

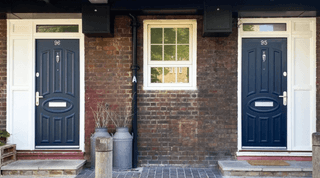

Contemporary Range™ External Flat Entrance Doorsets

The Gerda® Contemporary Doorset Range comprises steel-insulated fire doorsets for externally sited flat and apartment entrances, providing fire resistance, smoke control, security, thermal and acoustic insulation, and weather performance.

Doorsets are tested at UKAS-accredited test houses, with performance documented in the Declaration of Performance (DoP). The range holds dual certification for fire resistance and security. See the performance classifications and applicable test standards below.

Swipe for more of our creditations for doorsets

Logo 0
Logo 1
Logo 2
Logo 3
Logo 4

Call 01638 711028
to discuss your fire
and security needs

Send a message >
Contemporary Range™ External

Click for more

EI30 Sa
E30 EI15 Sa

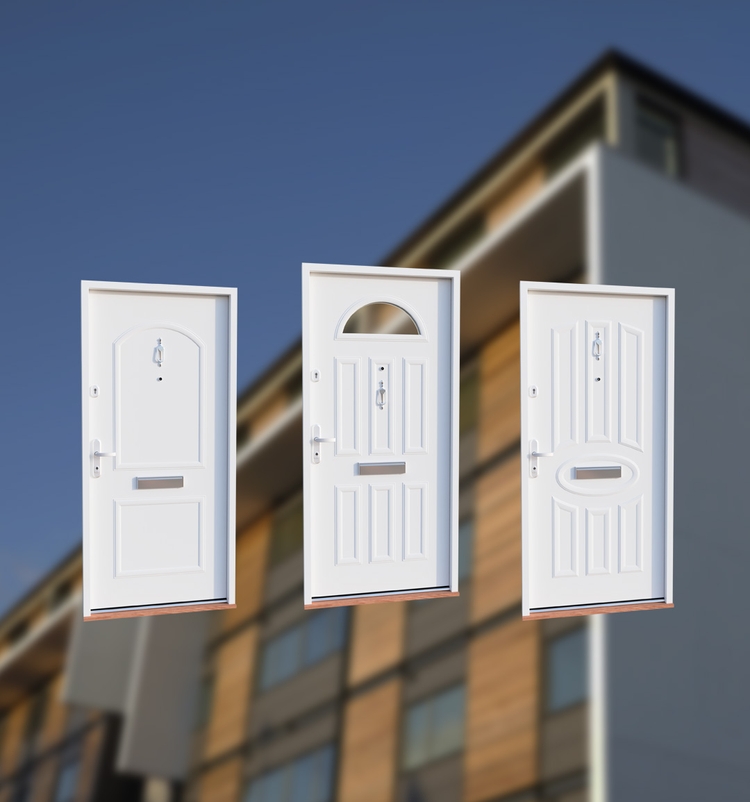

Contemporary Range™ External Flat Entrance Doorsets EI30 Sa

  • EI30 Sa Classification
  • Steel-insulated flat entrance with a timber and stone mineral wool internal leaf, encased in galvanised steel surround
  • 18 full-scale primary fire resistance and smoke control tests owned by Gerda Security, providing a range of tested options for specifiers
  • Performance and test evidence covering fire resistance (EN 1634-1), smoke control (EN 1634-3), acoustic performance (EN ISO 10140-2), thermal transmittance (EN ISO 10077), weathering (BS 6375-1) and enhanced security (PAS 24). For more details, please contact us for our performance specifications
  • G-Smart®: built-in digital traceability from survey and manufacture through to installation and maintenance
EI30 Sa
Tap Hotspot to find out more
Gerda Security primary-owned test evidence
Gerda Security primary-owned test evidence
• Based on complete doorset testing, including frame configurations • Fire resistance (EN 1634-1) and smoke control (EN 1634-3), plus five further performance criteria detailed in the performance summary next to this doorset • UKCA marked to applicable designated standards: BS EN 14351-1:2006+A2:2016 and BS EN 16034:2014 • Triple Certified for Fire Resistance, Enhanced Security and Smoke Control by BlueSky Certification • PAS 24 impact tested, with durability classified to a minimum of 50,000 opening and closing cycles
Doorset furniture
Doorset furniture
• Matching satin chrome finish furniture • Doorset furniture tested as part of the complete doorset (see the seven performance tests listed alongside this doorset) • Option of two door viewers
Gerda Handlesets
Gerda Handlesets
• User friendly handsets • Thoughtful design for everyday use • Tested in accordance with EN 1906 • Designed to resist attacks targeting the europrofile cylinder
Door finishes and design
Door finishes and design
• A choice of distinctive door styles • Robust construction for long-term use • Available in a range of solid colours, with foil-applied or painted finishes • Choice of woodgrain foil finishes, with matching frame finishes • Surface finishes designed to resist scratching
<p>Fire Resistance

Fire Resistance

EN 1634~1 tests

<p>Smoke Control

Smoke Control

EN 1634~3 tests

<p>Thermal Transmittance

Thermal Transmittance

ISO EN 10077 tests

<p>Enhanced Security

Enhanced Security

PAS 24 tests

<p>Ease of Access

Ease of Access

Tailored options

<p>Acoustics

Acoustics

ISO EN 10140~2 tests

<p>Weathering

Weathering

BS 6375~1 tests

<p>Operation &amp; Strength

Operation & Strength

BS 6375~ 2/3 tests

Contemporary Range™ External Flat Entrance Doorsets E30 EI15 Sa

  • E30 EI15 Sa Classification
  • Steel-insulated flat entrance doorset encased in a galvanised surround and finish with foil-coated veneer or paint.
  • 18 full scale primary fire resistance and smoke control tests owned by Gerda Security (not cascaded), providing a range of tested options for specifiers.
  • Performance and test evidence covering fire resistance (EN 1634-1), smoke control (EN 1634-3), acoustic performance (EN ISO 10140-2), thermal transmittance (EN ISO 10077), weathering (BS 6375-1) and enhanced security (PAS 24). For more details, please contact us for our performance specifications
  • G-Smart®: built-in digital traceability from survey and manufacture through to installation and maintenance.
E30 EI15 Sa
Tap Hotspot to find out more
Glazing options
Glazing options
• Security: IGUs classified to EN 356 P2A for resistance to manual attack • UV protection: low-emissivity glazing with UV protection to help reduce sunlight-related degradation • Impact safety: glazing in the specified doorset and frame configurations classified 1B1/1B1 to BS EN 12600
Gerda Security owned primary test evidence
Gerda Security owned primary test evidence
• Based on complete doorset testing, including frame configurations • Fire resistance (EN 1634-1) and smoke control (EN 1634-3), plus five further performance criteria detailed in the performance summary next to this doorset • UKCA marked to applicable designated standards: BS EN 14351-1:2006+A2:2016 and BS EN 16034:2014. • Triple Certified for Fire Resistance, Enhanced Security and Smoke Control by BlueSky Certification • PAS 24 impact tested, with durability classified to a minimum of 50,000 opening and closing cycles.
Gerda Handlesets
Gerda Handlesets
• User friendly handsets • Thoughtful design for everyday use • Tested in accordance with EN 1906 • Designed to resist attacks targeting the europrofile cylinder
Door finishes and design
Door finishes and design
• A choice of distinctive door styles • Robust construction for long-term use • Available in a range of solid colours, with foil-applied or painted finishes • Choice of woodgrain foil finishes, with matching frame finishes • Surface finishes designed to resist scratching
<p>Fire Resistance

Fire Resistance

EN 1634~1 tests

<p>Smoke Control

Smoke Control

EN 1634~3 tests

<p>Thermal Transmittance

Thermal Transmittance

ISO EN 10077 tests

<p>Enhanced Security

Enhanced Security

PAS 24 tests

<p>Ease of Access

Ease of Access

Tailored options

<p>Acoustics

Acoustics

ISO EN 10140~2 tests

<p>Weathering

Weathering

BS 6375~1 tests

<p>Operation &amp; Strength

Operation & Strength

BS 6375~ 2/3 tests

Click for more


Got a question about this product? Call 01638 711 028 or send us a message

Swipe through to see more

Furniture
Certification
Acoustics
Light
Primary Testing
Furniture

Furniture

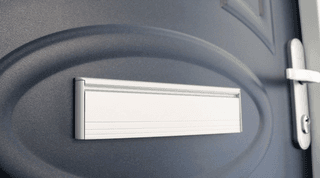

Our Contemporary doorsets feature streamlined styling, complemented by doorset furniture in a satin chrome finish.

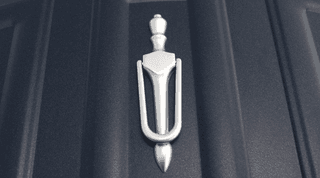

The doorset knocker is specially commissioned to provide a slimline design with a solid feel and clear sound.

Doorset furniture is tested as part of the complete doorset for applicable performance criteria, including fire resistance, smoke leakage control, enhanced security, acoustics, weather resistance and thermal transmittance.

Certification

Certification

Our doorsets are designed and tested with consideration of applicable building regulations, performance criteria and design requirements to support the living environment for residents.

We design our doorsets to meet applicable building regulation requirements across fire resistance, smoke control and other relevant performance criteria.

External fire doorsets are subject to applicable UKCA marking requirements and may need to demonstrate performance against criteria including fire resistance, smoke control, thermal transmittance, acoustics and weather resistance, as applicable.

Information on declared performance is provided in the Declaration of Performance.

Enhanced security and fire resistance are covered by the relevant third-party dual certification scheme.

Acoustics

Acoustics

Urban environments can expose residents to noise from road and rail transport, neighbouring properties and everyday community activity.

Stone wool is used within the doorset construction for its sound-reduction properties.

The Contemporary doorsets have been tested to BS EN ISO 10140-2. Acoustic performance is stated in the doorset’s Declaration of Performance (DoP), where applicable, to support assessment against relevant building regulation requirements.

Light

Light

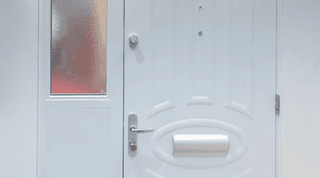

A white internal finish can help create a brighter-feeling hallway. The Contemporary doorset range offers a selection of styles, with the option to choose an internal colour different from the external finish.

These doorsets incorporate an insulated glazing unit (IGU), tested as part of the complete doorset where applicable.

The IGU is available with obscure glazing for privacy and incorporates argon gas fill and a low-emissivity coating. Any claims relating to UV protection should be supported by the relevant product evidence.

The glazing is classified P2A to EN 356 for resistance to manual attack. Confirm any comparison with Secured by Design requirements against the applicable specification.

The glazing contributes to the overall thermal transmittance of the doorset. The stated doorset U-value is 1.8 W/m²K, subject to the applicable configuration and supporting evidence.

Primary Testing

Supporting Technical Information and Test Evidence

Supporting documentation for our stated product performance claims is maintained and made available with the applicable requirements of the Code for Construction Product Information (CCPI).

We recognise the importance of providing accurate, current and verifiable information to substantiate our product performance claims. As the manufacturer, we are responsible for explaining our products’ intended applications, design characteristics, performance claims and limitations, and ensuring supporting evidence is accurately represented in its proper technical context.

Some technical documentation, including test reports and assessments, may contain commercially sensitive information and proprietary intellectual property. We protect this information from unnecessary disclosure while meeting our CCPI obligations.

Requests for supporting technical information are handled in accordance with applicable CCPI requirements, taking into account the request’s purpose and scope. Where permitted, access may be provided through controlled disclosure, appropriate confidentiality arrangements or review by a suitably qualified independent third party.

Where further information is needed to verify product performance claims, we will work with the requester to identify an appropriate means of providing it while protecting proprietary information to the extent permitted.

Please submit your request using the form below. A member of our team will respond within 5 working days.
